Punch set Ø2 to 59 mm + sealing ring cutter Ø420 mm

41176 https://www.onpex.be/en/shop/detail/gasket-cutting-machine/punch-set-O2-to-59-mm-sealing-ring-cutter-O420-mm /media/images/producten/webp/xl_media_image8.webp Punch set Ø2 to 59 mm + sealing ring cutter Ø420 mm JLB259PACC
Model : JLB259PACC
Availability : In stock

Set of 34 interchangeable and combinable cutting dies with cutting compass up to 420 mm

The cutting dies lock onto the mandrel very easily thanks to the pin system and can be combined to cut a crown in a single operation. The handle is a powerful, comfortable and safe striking tool. This dual-purpose tool also allows the use of the Ø420 mm circular cutter for cutting larger diameters ranging from 60 to 420 mm.
The retractable centring tip allows precise positioning of the cut-out with the cookie cutter and also when using the circular cutter.

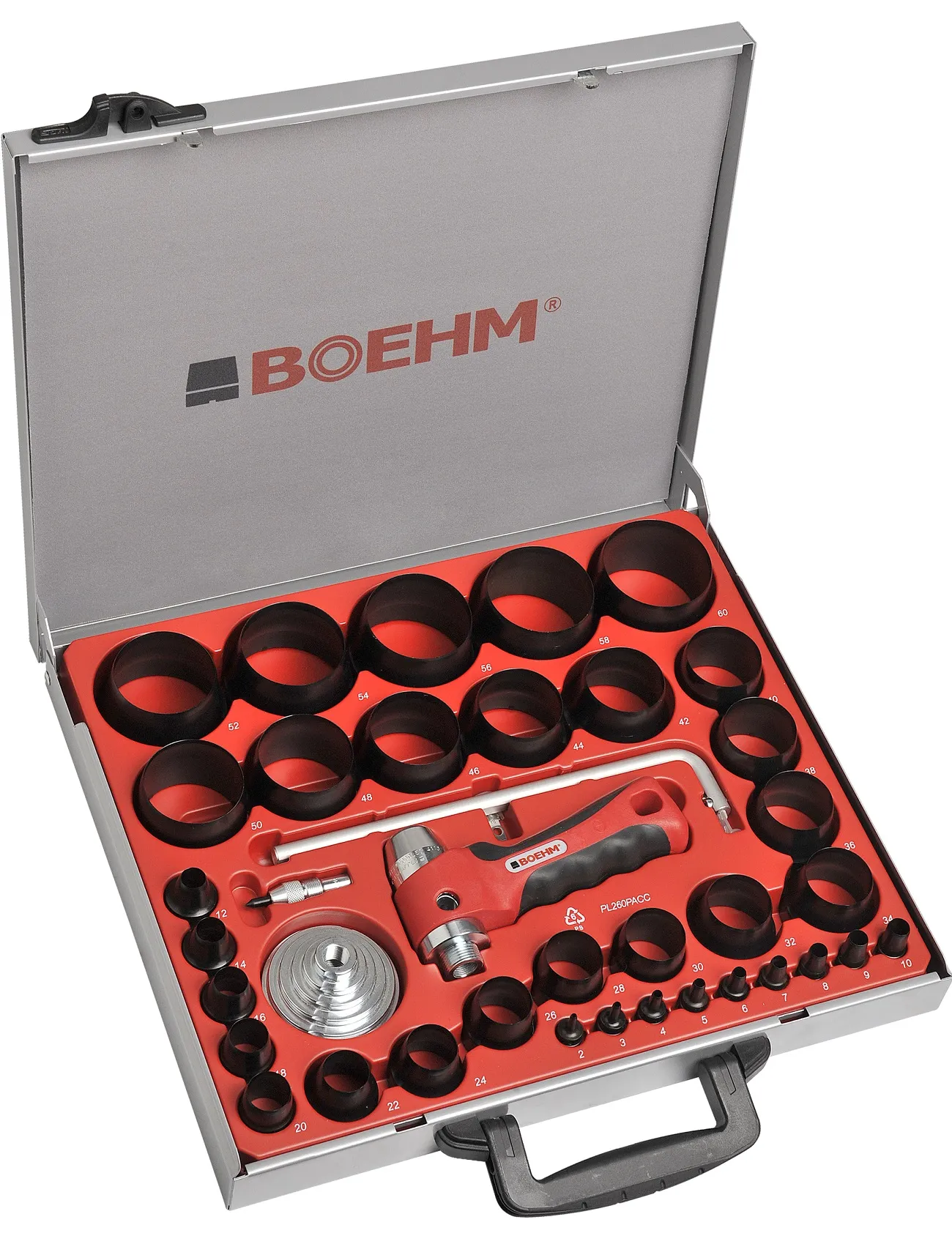

This set contains:
34 cookie cutters: Ø2-3-4-5-6-7-8-9-10-11-13-15-17-19-21-23-25-27-29-31-33-35-37-39-41-43-45-47-49-51-53-55-57-59 mm
1 Chuck handle
1 Chuck for Ø2 to 60 mm and 1/8'“ to 2 3/8”' cutting dies
1 Retractable centring pin
1 Shaft for Ø420 mm circular cutter with blade 1 replacement blade
Hex key supplied for quick blade replacement and chuck tightening
Instruction manual supplied

  • €450.02
€544.52 incl. VAT
